型號 TYPE | PD (W) | ID (A) | V(BR)DSS (V) | RDS(ON)(max) | VGS(th) | Gfs(min) | 管腳排列 PIN ARRAY | |||||
| (mΩ) | ld(A) | Vgs(V) | (V) | ld(μA) | (S) | VDS(V) | lo(A) | |||||
| AO3400 | 1.4 | 5.8 | 30 | 28 | 0.7 | 10 | 0.7~1.4 | 250 | 10 | 5 | 5 | GDS |
AO3401 | 1.4 | -4.2 | -30 | 50 | -4.2 | -10 | -0.7--1.3 | -250 | 7 | -5 | -5 | GDS |
| AO3402 | 1.4 | 4 | 30 | 52 | 4 | 10 | 0.5~1.5 | 250 | 14 | 5 | 3.6 | GDS |
| AO3403 | 1.4 | -2.6 | -30 | 130 | -2.6 | -10 | -0.7~-1.3 | -250 | 3 | -5 | -2.5 | GDS |
| AO3404 | 1.4 | 5.8 | 30 | 28 | 5.8 | 10 | 1~3 | 250 | 10 | 5 | 5.8 | GDS |
| AO3407 | 1.4 | -4.1 | -30 | 52 | -4.1 | -5.5 | -1~-3 | -250 | 5.5 | -5 | -4 | GDS |
| AO3409 | 1.4 | -2.6 | -30 | 130 | -2.6 | -10 | -1~-3 | -250 | 3 | -5 | -2.5 | GDS |
| AO3413 | 1.4 | -3 | -20 | 97 | -3 | -4.5 | -0.3~-1 | -250 | 4 | -5 | -3 | GDS |
| AO3414 | 1.4 | 4.2 | 20 | 50 | 4.2 | 4.5 | 0.4~1 | 250 | 11 | 5 | 4.2 | GDS |
| AO3415 | 1 | -4 | -20 | 41 | -4 | -4.5 | -0.3~-0.9 | -250 | 20 | -5 | -4 | GDS |
| AO6401 | 2 | -5 | -30 | 47 | -5 | -10 | -0.5~-1.3 | -250 | 18 | -5 | -5 | GDS |
| AO6402 | 1.4 | 4 | 30 | 52 | 4 | 10 | 0.5~1.5 | 250 | 15 | 5 | 3.6 | GDS |

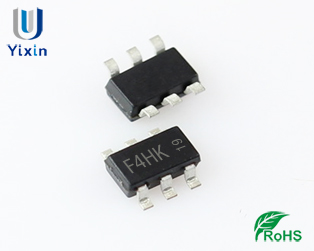

| AO6404 | 2 | 8.6 | 20 | 17 | 8.5 | 10 | 0.5~1 | 250 | 36 | 5 | 8 | GDS |
| AO6405 | 2 | -5 | -30 | 52 | -5 | -10 | -1.4~-2.4 | -250 | 10 | -5 | -5 | GDS |
| AO6409 | 2.1 | -5.5 | -20 | 41 | -5.5 | -4.5 | -0.3~-0.9 | -250 | 20 | -5 | -5.5 | GDS |
| AO6601 | 1.15 | 3.4 | 30 | 60 | 3.4 | 10 | 0.5~1.5 | 250 | 14 | 5 | 3.4 | GDS |
| AO6602 | 1.15 | 3.5 | 30 | 50 | 3.5 | 10 | 1.5~2.5 | 250 | 12 | 5 | 3.5 | GDS |
| AO6604 | 2 | 8.6 | 20 | 17 | 8.5 | 10 | 0.5~1 | 250 | 16 | 5 | 8 | GDS |
| AO6800 | 1.15 | 3.4 | 30 | 60 | 3.4 | 10 | 0.5~1.5 | 250 | 14 | 5 | 3.4 | GDS |
| AO6801 | 1.15 | -2.3 | -30 | 115 | -2.3 | -10 | -0.5~-1.4 | -250 | 8 | -5 | -2.3 | GDS |
| AO6808 | 1.3 | 6 | 20 | 23 | 6 | 4.5 | 0.5~1 | 250 | 34 | 5 | 6 | GDS |
| IRLML2402 | 0.54 | 1.2 | 20 | 250 | 0.93 | 4.5 | 0.7~ | 250 | 1.3 | 10 | 0.47 | GDS |
| IRLML6401 | 1.3 | -4.3 | -12 | 50 | -4.3 | -4.5 | -0.4~-0.95 | -250 | 8.6 | -10 | -4.3 | GDS |
| IRLML2502 | 1.25 | 4.2 | 20 | 45 | 4.2 | 4.5 | 0.6~1.2 | 250 | 5.8 | 10 | 4 | GDS |
| IRLML6402 | 1.3 | -3.7 | -20 | 65 | -3.7 | -4.5 | -0.4~-1.2 | -250 | 6 | -10 | -3.7 | GDS |
| 2SJ210 | 200 | -200 | -60 | 15 | -10 | -4 | -1.4~-2.4 | -250 | 20 | -5 | -10 | GDS |
| 2SK2158 | 200 | ±0.1 | 50 | 50 | 1 | 1.5 | 0.5~1.1 | 10 | 20 | 3 | 10 | GDS |
| 2SK1582 | 200 | 200 | 30 | 5 | 10 | 4 | 0.8~1.8 | 250 | 20 | 5 | 10 | GDS |
| 2SK1590 | 200 | 0.2 | 60 | 3 | 10 | 10 | 0.8~1.8 | 250 | 20 | 5 | 10 | GDS |
| BSS84 | 300 | -130 | -50 | 10 | -0.1 | -5 | -0.8~-2 | -250 | 0.05 | -25 | -0.1 | GDS |
| BSS138 | 300 | 0.3 | 50 | 2.5 | 0.22 | 10 | 0.5~1.5 | 250 | 100 | 25 | 0.3 | GDS |
| SI2300 | 1.25 | 3.8 | 20 | 40 | 5 | 4.5 | 0.6~1.5 | 250 | 5 | 5 | 5 | GDS |
| SI2301 | 1.25 | -2.8 | -20 | 100 | -2.8 | -4.5 | -0.45~-1 | -250 | GDS | |||
| SI2302 | 1.25 | 3 | 20 | 72 | 3.6 | 4.5 | 0.4~1 | 250 | GDS | |||
| SI2303 | 1.25 | -1.9 | -30 | 200 | -1.7 | -10 | -1~-3 | -250 | GDS | |||
| SI2304 | 0.25 | 2.5 | 30 | 65 | 2.5 | 10 | 1~3 | 250 | 4.6 | 4.5 | 2.5 | GDS |
| SI2305 | 1.25 | -4 | -30 | 55 | -4 | -10 | -0.4~-1.1 | -250 | GDS | |||
| SI2306 | 1.25 | 3.6 | 20 | 60 | 3.6 | 4.5 | 0.4~1 | 250 | GDS | |||
| SI2307 | 1.25 | -3.2 | -30 | 78 | -3.2 | -10 | -1~-3 | 250 | 5 | -10 | -3.2 | GDS |
| SI2309 | 1.25 | -2.2 | -20 | 165 | -2.2 | -4.5 | -0.5~-1.5 | -250 | 3 | -5 | -2.2 | GDS |
| AO4840 | 2 | 6 | 40 | 30 | 6 | 10 | 1.7~3 | 250 | 27 | 5 | 6 | GDS |
| AO7410 | 0.35 | 1.6 | 30 | 90 | 1.6 | 10 | 1~1.8 | 250 | 4.5 | 5 | 3.8 | GDS |
| AO7800 | 0.3 | 0.9 | 20 | 300 | 0.9 | 4.5 | 0.5~0.9 | 250 | 2.6 | 5 | 0.8 | GDS |
| AO7801 | 0.3 | -0.6 | -20 | 520 | -0.6 | -4.5 | -0.5~-0.9 | 250 | 1.7 | -5 | -0.6 | GDS |
| AO8804 | 1.5 | 8 | 20 | 13 | 8 | 10 | 0.5~1 | 250 | 36 | 5 | 8 | GDS |
| AO4456 | 3.1 | 20 | 30 | 4.6 | 20 | 10 | 1.4~2.4 | 250 | 112 | 5 | 20 | GDS |
| AO4622 | 2 | 7.3 | 20 | 23 | 7.3 | 10 | 0.6~2 | 250 | 17 | 5 | 7.3 | GDS |
| AO4442 | 2.5 | 3.1 | 75 | 130 | 3.1 | 10 | 1~3 | 250 | 8.2 | 5 | 3.1 | GDS |
| AO4476 | 3.7 | 15 | 30 | 10.5 | 15 | 10 | 1~2.5 | 250 | 33 | 5 | 15 | GDS |
| AO4610 | 2 | 8.5 | 30 | 18 | 8.5 | 10 | 1~3 | 250 | 10 | 5 | 8.5 | GDS |
| AO4807 | 2 | -6 | -30 | 35 | -6 | -10 | -1.2~-2.4 | 250 | 13 | -5 | -6 | GDS |
| AO4817 | 2 | -8 | -30 | 18 | -8 | -20 | -1~-3 | 250 | 15 | -5 | -8 | GDS |
| AO4850 | 2 | 3.1 | 75 | 130 | 3.1 | 10 | 1~3 | 250 | 10 | 5 | 3.1 | GDS |
| AO4832 | 1.5 | 8 | 30 | 15 | 8 | 10 | 0.6~1.4 | 250 | 23 | 5 | 8 | GDS |
| AO4704 | 3.1 | 13 | 30 | 11.5 | 13 | 10 | 0.6~2 | 250 | 30 | 5 | 13 | GDS |
| AO4454 | 3.1 | 6.5 | 100 | 36 | 6.5 | 10 | 2.8~4 | 250 | 20 | 5 | 6.5 | GDS |
| AO4438 | 3.1 | 8.2 | 60 | 22 | 8.2 | 10 | 1~3 | 250 | 24 | 5 | 8.2 | GDS |
| AO4615 | 2 | 7.2 | 30 | 24 | 7.2 | 10 | 1~3 | 250 | 10 | 5 | 4 | GDS |
| AO4614 | 2 | 6 | 40 | 31 | 6 | 10 | 1~3 | 250 | 22 | 5 | 6 | GDS |
| AO4627 | 2 | 4.5 | 30 | 50 | 4.5 | 10 | 1.5~2.5 | 250 | 10 | 5 | 4.5 | GDS |
| AO4453 | 2.5 | -9 | -12 | 19 | -9 | -4.5 | -0.3~-0.9 | -250 | -33 | -5 | -9 | GDS |
| AO4600 | 2 | 6.9 | 30 | 27 | 6.9 | 10 | 0.7~1.4 | 250 | 12 | 5 | 5 | GDS |
| AO4260 | 3.1 | 18 | 60 | 5.2 | 18 | 10 | 1.3~2.4 | 250 | 70 | 5 | 18 | GDS |
| AO4292 | 3.1 | 8 | 100 | 23 | 8 | 10 | 1.6~2.7 | 250 | 30 | 5 | 8 | GDS |
| AO4496 | 14 | 10 | 30 | 19.5 | 10 | 10 | 1.4~2.5 | 250 | 30 | 5 | 10 | GDS |
| AO4604 | 2 | 6.9 | 30 | 28 | 6.9 | 5 | 1~3 | 250 | 10 | 5 | 6.9 | GDS |
| AO4714 | 3 | 20 | 30 | 4.7 | 20 | 10 | 1.2~2.2 | 250 | 90 | 5 | 20 | GDS |
| AO4240 | 3.1 | 24 | 40 | 3.3 | 20 | 10 | 1.2~2.3 | 250 | 90 | 5 | 20 | GDS |
| AO4302 | 3.6 | 23 | 30 | 4 | 20 | 10 | 1.3~2.3 | 250 | 120 | 5 | 20 | GDS |
| AO4414 | 3 | 8.5 | 30 | 26 | 8.5 | 10 | 1~3 | 250 | 10 | 5 | 5 | GDS |
| AO4828 | 2 | 4.5 | 60 | 56 | 4.5 | 10 | 1~3 | 250 | 11 | 5 | 4.5 | GDS |
| AO4801 | 2 | -5 | -30 | 49 | -5 | -10 | -0.7~-1.3 | -250 | 7 | -5 | -5 | GDS |
| AO4421 | 3.1 | -6.2 | -60 | 40 | -6.2 | -10 | -1~-3 | -250 | 18 | -5 | -6.2 | GDS |
| AO4618 | 2 | 8 | 40 | 19 | 8 | 10 | 1.3~2.4 | 250 | 33 | 5 | 8 | GDS |
| AO4410 | 3.1 | 18 | 30 | 5.5 | 10 | 18 | 0.8~1.5 | 250 | 102 | 5 | 18 | GDS |
| AO4411 | 3 | -8 | -30 | 32 | -8 | -10 | -1.2~-2.4 | -250 | 14.5 | -5 | -8 | GDS |
| AO4459 | 3.1 | -6.5 | -30 | 46 | -6.5 | -10 | -1.5~-2.5 | -250 | 11 | -5 | -6.5 | GDS |
| AO4419 | 3.1 | -9.7 | -30 | 20 | -9.7 | -10 | -1.5~-2.5 | -250 | 27 | -5 | -9.7 | GDS |
| AO4607 | 2 | 6.9 | 30 | 28 | 6.9 | 10 | 1~3 | 250 | 10 | 5 | 6.9 | GDS |
| AO4912 | 2 | 8.5 | 30 | 26 | 7 | 10 | 1~2 | 250 | 22 | 5 | 7 | GDS |
| AO4588 | 3.1 | 20 | 30 | 4.8 | 20 | 10 | 1.3~2.4 | 250 | 85 | 5 | 20 | GDS |
| AO4882 | 2 | 8 | 40 | 19 | 8 | 10 | 1.4~2.4 | 250 | 33 | 5 | 8 | GDS |
| AO4310 | 3.6 | 27 | 36 | 3.1 | 20 | 10 | 1.2~2.3 | 250 | 151 | 5 | 20 | GDS |
| AO4306 | 3.1 | 13 | 30 | 11.5 | 12 | 10 | 1.5~2.5 | 250 | 45 | 5 | 12 | GDS |
| AO4578 | 3.1 | 20 | 30 | 5.7 | 20 | 10 | 1.4~2.2 | 250 | 62 | 5 | 20 | GDS |
| AO4900 | 2 | 6.9 | 30 | 27 | 6.9 | 10 | 0.7~1.4 | 250 | 12 | 5 | 5 | GDS |
| AO3401A | 1.4 | -4 | -30 | 50 | -4 | -10 | -0.5~-1.3 | -250 | 17 | -5 | -4 | GDS |
| AO3400A | 1.4 | 5.7 | 30 | 26.5 | 5.7 | 10 | 0.65~1.45 | 250 | 33 | 5 | 5.7 | GDS |
| AO3419 | 1.4 | -3.5 | -20 | 85 | -3.5 | -10 | -0.5~-1.2 | -250 | 8.6 | -5 | -3.5 | GDS |
| AO3418 | 1.4 | 3.8 | 30 | 55 | 3.8 | 10 | 0.5~1.5 | 250 | 14 | 5 | 3.8 | GDS |
| AO3434 | 1.4 | 4.2 | 30 | 52 | 4.2 | 10 | 1~1.8 | 250 | 8.5 | 5 | 4.2 | GDS |
| AO3442 | 1.4 | 1 | 100 | 630 | 10 | 1 | 1.7~2.9 | 250 | 2.8 | 5 | 1 | GDS |
| AO3416 | 1.4 | 6.5 | 20 | 22 | 6.5 | 4.5 | 0.4~1.1 | 250 | 50 | 5 | 6.5 | GDS |
| AO3415A | 1.5 | -4 | -20 | 41 | -4 | -4.5 | -0.3~-0.9 | -250 | 20 | -5 | -4 | GDS |
| SI9435 | 2.5 | -5.3 | -30 | 50 | -5.3 | -10 | -1~-3 | -250 | 12 | -15 | -5.3 | GDS |
| AO4803 | 2 | -5 | -30 | 52 | -5 | -10 | -1~-3 | -250 | 6 | -5 | -5 | GDS |
| SI2308 | 1.25 | 5.4 | 20 | 27 | 5.4 | 4.5 | 0.5~1.2 | 250 | 17 | 10 | 5.4 | GDS |
| AO4468 | 3.1 | 11.6 | 30 | 14 | 11.6 | 10 | 1.5~3 | 250 | 19 | 5 | 11.6 | GDS |
| AO4606 | 2 | 6.9 | 30 | 25 | 6.9 | 10 | 1~3 | 250 | 10 | 5 | 6.9 | GDS |
| AO4407 | 3 | -12 | -30 | 14 | -10 | -10 | -1.7~-2.5 | -250 | 26 | -5 | -10 | GDS |
| AO4407A | 3.1 | -12 | -30 | 11 | -12 | -20 | -1.7~-3 | -250 | 21 | -5 | -10 | GDS |
| AO4411 | 3 | -8 | -30 | 32 | -8 | -10 | -1.2~-2.4 | -250 | 14.5 | -5 | -8 | GDS |
| AO4435 | 3.1 | -10 | -30 | 18 | -10 | -10 | -1.7~-3 | -250 | 22 | -5 | -10 | GDS |
| AO4405 | 3.1 | -6 | -30 | 50 | -6 | -10 | -1.4~-2.4 | -250 | 14 | -6 | -5 | GDS |
| AO4409 | 3 | -15 | -30 | 7.5 | -15 | -10 | -1.4~-2.7 | -250 | 35 | -5 | -15 | GDS |
| AO4403 | 3 | -6.1 | -30 | 46 | -6.1 | -10 | -0.7~-1.3 | -250 | 7 | -5 | -5 | GDS |
| AO4406 | 3 | 11.5 | 30 | 14 | 12 | 10 | 0.8~1.5 | 250 | 25 | 5 | 10 | GDS |
| AO4404 | 3 | 8.5 | 30 | 24 | 8.5 | 10 | 0.7~1.4 | 250 | 10 | 5 | 5 | GDS |
| AO4408 | 3 | 12 | 30 | 14 | 12 | 10 | 1~2.5 | 250 | 30 | 5 | 10 | GDS |
| AO4433 | 3 | -11 | -30 | 14 | -11 | -20 | -2~-4 | -250 | 20 | -5 | -11 | GDS |
| AO4430 | 3 | 18 | 30 | 5.5 | 18 | 10 | 1~2.5 | 250 | 82 | 5 | 18 | GDS |
| AO4437 | 3 | -11 | -12 | 16 | -11 | -4.5 | -0.3~-1 | -250 | 38 | -5 | -11 | GDS |
| FDN335N | 0.5 | 1.7 | 20 | 0.7 | 1.7 | 4.5 | 0.4~1.5 | 250 | 5 | 1.5 | GDS | |
| IRLML2803TRPBF | 540 | 1.2 | 30 | 250 | 0.91 | 10 | 1.0~ | 250 | 0.87 | 10 | 0.46 | GDS |
| IRLML5203TRPBF | 1.25 | -3.0 | -30 | 98 | -3 | -10 | -1~-2.5 | -250 | 3.1 | -10 | -3 | GDS |
| IRLML6302TRPBF | 540 | -0.78 | -20 | 600 | -0.61 | -4.5 | -0.7~-1.5 | -250 | 0.56 | -10 | -0.31 | GDS |
| WNM2016 | 0.7 | 2.9 | 20 | 47 | 3.6 | 4.5 | 0.4~1 | 250 | 8.5 | 5 | 3.1 | GDS |
| WNM2020 | 0.24 | 0.29 | 20 | 310 | 0.55 | 4.5 | 0.45~0.85 | 250 | 2 | 5 | 0.55 | GDS |
| WPM2026 | 0.6 | -2.7 | -20 | 65 | -3.2 | -4.5 | -0.35~-1 | -250 | 10 | -5 | -3.6 | GDS |
| FQD1N60C | 1 | 0.3 | 600 | 11.5 | 0 5. | 10 | 2~4 | 250 | GDS | |||
| FQD1N80 | 2.5 | 1 | 800 | 20 | 0.5 | 10 | 3~5 | 250 | 0.75 | 50 | 0.5 | GDS |
| FQD2N60C | 2.5 | 1.9 | 600 | 4.7 | 0.95 | 10 | 2~4 | 250 | 5 | 40 | 0.95 | GDS |
| FQD5N60C | 2.5 | 2.8 | 600 | 2.5 | 1.4 | 10 | 2~4 | 250 | 4.7 | 40 | 1.4 | GDS |
| FQD13N06L | 2.5 | 11 | 60 | 115 | 5.5 | 10 | 1~2.5 | 250 | 6 | 25 | 5.5 | GDS |
| FQD19N10L | 2.5 | 15.6 | 100 | 100 | 7.8 | 10 | 1~2 | 250 | 14 | 30 | 7.8 | GDS |
| IRFR024NTRPBF | 230 | 120 | 75 | 5.8 | 75 | 10 | 2~4 | 150 | 320 | 50 | 75 | GDS |
| IRFR120NTRPBF | 48 | 10 | 100 | 185 | 6 | 10 | 1~2 | 250 | 3.1 | 25 | 6 | GDS |
| IRFR220NTRPBF | 43 | 5 | 200 | 600 | 2.9 | 10 | 2-~4 | 250 | 2.6 | 50 | 2.9 | GDS |
| IRFR5305TRPBF | 110 | -31 | -55 | 650 | -16 | -10 | -2~-4 | -250 | 8 | -25 | -16 | GDS |
| IRFR5410TRPBF | 66 | -13 | -100 | 205 | -7.8 | -10 | -2~-4 | -250 | 3.2 | -50 | -7.8 | GDS |
| IRFR9120NTRPBF | 40 | -6.6 | -100 | 480 | -3.9 | -10 | -2~-4 | -250 | 1.4 | -50 | -4 | GDS |
| IRFR9024NTRPBF | 38 | -11 | -55 | 175 | -6.6 | -10 | -2~-4 | -250 | 2.5 | -50 | -4 | GDS |
| IRLR024N | 45 | 17 | 55 | 65 | 10 | 10 | 1~2 | 250 | 8.3 | 25 | 11 | GDS |
| IRLR120NTRPBF | 48 | 10 | 100 | 185 | 6 | 10 | 1~2 | 250 | 3.1 | 25 | 6 | GDS |
| IRLR024NTRPBF | 230 | 120 | 75 | 5.8 | 75 | 10 | 2~4 | 150 | 320 | 50 | 75 | GDS |
| IRLR2905TRPBF | 110 | 42 | 55 | 27 | 25 | 10 | 1~2 | 250 | 21 | 25 | 25 | GDS |
| IRLR3410TRPBF | 79 | 17 | 100 | 105 | 10 | 10 | 1~2 | 250 | 7.7 | 25 | 9 | GDS |
| IRLR8726TRPBF | 75 | 86 | 30 | 5.8 | 25 | 10 | 1.35~2.35 | 50 | 73 | 15 | 20 | GDS |
| SI9410DY | 2.5 | 7 | 30 | 30 | 7 | 10 | 1~3 | 250 | 15 | 15 | 7 | GDS |
