2.0AMPERE-FAST RECOVERY/2.0A 快恢復二極管

	最高反向峰值電壓	最大平均整流電流		最大峰值浪涌電流	最大反向漏電流	正向壓降		最大反向恢復時間	封裝形式
直插	Maximum Peak Reverse Voltage	Maximum Average Rectified Current @Half-Wave Resistive Load 60Hz		Maximum Forward Peak Surge Current @8.3ms Superimposed	Maximum Reverse Current @PRV @25CTa	Maximum Forward Voltage @25CTa		Maximum Reverse Recovery Time	直插



	PRV	Io@TA		IFM(Surge)	IR	IFM	VFM	Trr
	Vpk	Aav	℃	Apk	UAds	Apk	Vpk	ns
1.0AMPERE-FAST RECOVERY/1.0A 快恢復二極管
FR101	50	1.O	75	30	5.O	1.O	1.3	150	DO-41
FR102	100	1.O	75	30	5.O	1.O	1.3	150	DO-41
FR103	200	1.O	75	30	5.O	1.O	1.3	150	DO-41
FR104	400	1.O	75	30	5.O	1.O	1.3	150	DO-41
FR105	600	1.O	75	30	5.O	1.O	1.3	250	DO-41
FR106	800	1.O	75	30	5.O	1.O	1.3	500	DO-41
FR107	1000	1.O	75	30	5.O	1.O	1.3	500	DO-41
1.5AMPERE-FAST RECOVERY/1.5A 快恢復二極管
FR151	50	1.5	75	60	5.O	1.5	1.3	150	DO-15
FR152	100	1.5	75	60	5.O	1.5	1.3	150	DO-15
FR153	200	1.5	75	60	5.O	1.5	1.3	150	DO-15
FR154	400	1.5	75	60	5.O	1.5	1.3	150	DO-15
FR155	600	1.5	75	60	5.O	1.5	1.3	250	DO-15
FR156	800	1.5	75	60	5.O	1.5	1.3	500	DO-15
FR157	1000	1.5	75	60	5.O	1.5	1.3	500	DO-15
2.0AMPERE-FAST RECOVERY/2.0A 快恢復二極管
FR201	50	2.O	75	70	5.O	2.O	1.3	150	DO-15
FR202	100	2.O	75	70	5.O	2.O	1.3	150	DO-15
FR203	200	2.O	75	70	5.O	2.O	1.3	150	DO-15
FR204	400	2.O	75	70	5.O	2.O	1.3	150	DO-15
FR205	600	2.O	75	70	5.O	2.O	1.3	250	DO-15
FR206 ?	800	2.O	75	70	5.O	2.O	1.3	500	DO-15
FR207	1000	2.O	75	70	5.O	2.O	1.3	500	DO-15
3.0AMPERE-FAST RECOVERY/3.0A 快恢復二極管
FR301	50	3.O	75	200	10.O	3.O	1.3	500	DO-27
FR302	100	3.O	75	200	10.O	3.O	1.3	500	DO-27
FR303	200	3.O	75	200	10.O	3.O	1.3	500	DO-27
FR304	400	3.O	75	200	10.O	3.O	1.3	500	DO-27
FR305	600	3.O	75	200	10.O	3.O	1.3	500	DO-27
FR306	800	3.O	75	200	10.O	3.O	1.3	500	DO-27
FR307	1000	3.O	75	200	10.O	3.O	1.3	500	DO-27
快恢復
STTH1002CT	200	16	175	20	5	5	1.1	25	TO-220
STTH10LCD06C	600	10	175	20	5	1	2	25	TO-220
STTH15AC06C	600	15	175	15	7.5	1	1.9	25	TO-220
STTH1602C	200	20	175	30	16	6	1.1	21	TO-220
STTH1620CT	200	20	175	30	16	6	1.1	21	TO-220
STTH16L06C	600	20	175	30	8	8	1.8	35	TO-220
STTH16R04CT	400	16	175	30	8	10	1.5	25	TO-220
STTH2002CT	200	30	175	30	10	10	1.1	22	TO-220
STTH2003CT	300	20	170	30	10	20	1	35	TO-220
STTH20LCD06CT	200	30	175	50	15	20	0.75	17	TO-220
STTH3002C	200	30	175	50	15	20	0.75	17	TO-220
STTH3002CT	200	30	175	50	15	20	0.75	17	TO-220
STTH602CT	200	6	175	22	3	3	0.8	14	TO-220
STTH802CT	200	8	175	10	4	4	0.95	20	TO-220
STTH806CT	600	8	175	35	30	4	2.3	30	TO-220
STTH806TTI	600	8	150	80	14	10	2.6	13	TO-220
STTH8S06D	600	8	175	60	8	20	1.5	12	TO-220
STTTH806TTI									TO-220
STTH2003CFP	300	20	170	30	10	20	1	35	TO-220F
STTH2004SFP									TO-220F
STTA3006CW	600	30	150	30	200	100	1.06	35	TO-247
STTH1506TPI	600	15	150	130	20	15	3.6	35	TO-247
STTH20P03SW									TO-247
STTH3006W	600	30	175	160	25	30	1.85	50	TO-247
STTH3012W	1200	30	175	50	30	20	1.3	57	TO-247
STTH30L06CW	600	40	175	30	15	15	0.95	55	TO-247
STTH30L06W	600	30	175	50	30	25	1	65	TO-247
STTH30P03S
STTH30R03CW	300	30	175	30	15	20	1.4	35	TO-247
STTH30W02CW	200	30	175	30	15	10	0.9	20	TO-247
STTH40P03S	300	40	175	80	40	50	0.9		TO-247
STTH50W03CW	300	50	175	200	15	25	1.5	27	TO-247
STTH6002C	200	60	175	50	30	30	0.75	22	TO-247
STTH6002CW	200	60	175	330	30	30	1.05	27	TO-247
STTH6003CW	300	60	135	60	30	60	1	55	TO-247
STTH6006W	600	60	175	90	60	50	1.1	60	TO-247
STTH6012W	1200	60	175	80	60	30	1.3	50	TO-247
STTH60P03W									TO-247
STTH60RL03CW									TO-247
10GL2CZ47A	400	10	150	50	10	5	0.98		TO-220F
F30U20DN	200	30	100	300	30	30	1.0	40	TO-3PF
F30U60DN	600	30	100	180	15	2.3	30	90	TO-3PF
F60UP20DN	200	30	100	30	2.3	1.1	30	22	TO-3PF
FFA20U40DNTU	400	20	100	200	50	20	1.4	50	TO-3PF
FFA20U60DN	600	20	100	120	8	20	2.2	90	TO-3PF
FFA40UP20DN	200	20	120	200	100	20	1.0	35	TO-3PF
FFA40UP35STU	350	40	111	400	100	40	1.5	53	TO-3PF
FFA60U60DN	600	60	100	360	25	60	2.0	90	TO-3PF
FFA60UA60DN	600	30	95	180	100	30	2.0	90	TO-3PF
FFA60UP20DN	200	30	100	300	10	30	1.0	32	TO-3PF
FFA60UP30DN	300	30	135	300	100	30	1.3	55	TO-3PF
F12UP20DN	200	6	125	60	100	6	1.0	35	TO-220
F20UP20DN	200	20	25	200	10	10	0.96	35	TO-220
FFP06U20DN	200	6	100	60	6	6	1.0	35	TO-220
FFP10U20DN	200	10	100	100	10	10	1.0	10	TO-220
FFP15U20DN	200	15	100	150	15	15	1.0	40	TO-220
FFP20UP20DN	200	10	120	100	100	10	1.0	35	TO-220
FFP30UP20DN	200	15	120	150	100	15	1.0	100	TO-220
FFPF06U150S	1500	6	125	60	10	6	1.7	10	TO-220
FEP16AT	50	16	100	200	10	8	0.95	35	TO-220
FEP16BT	100	16	100	200	10	8	0.95	35	TO-220
FEP16BTD	100	16	100	200	10	8	0.95	35	TO-220
FEP16CT	150	16	100	200	10	8	0.95	35	TO-220
FEP16DTA	200	16	100	200	10	8	0.95	35	TO-220
FEP16DTD	200	16	100	200	10	8	0.95	35	TO-220
FEP16FT	300	16	100	200	10	8	1.3	50	TO-220
FEP16FTA	300	16	100	200	10	8	1.3	50	TO-220
FEP16GT	400	16	100	200	10	8	1.3	50	TO-220
FEP16GTA	400	16	100	200	10	8	1.3	50	TO-220
FEP16JT	600	16	100	200	10	8	1.3	50	TO-220
FEP16JTA	600	16	100	200	10	8	1.3	50	TO-220
FEP16JTD	600	16	100	200	10	8	1.3	50	TO-220
FRP2020CC	200	10	150	20	5	10	1.0	35	TO-220
F06U20DP	200	6	100	60	6	6	1.0	35	TO-220F
F10U150S	1500	10	125	100	15	10	1.7	150	TO-220F
F20LC30M									TO-220F
FFPF04U40DN	400	4	100	40	10	4	1.3	45	TO-220F
FFPF06F20DN	200	6	100	60	3	6	1.2	120	TO-220F
FFPF10U20DN	200	10	100	100	10	10	1.0	35	TO-220F
FFPF10U20DP	200	10	100	100	10	10	1.0	35	TO-220F
FFPF10U30DN	300	10	100	100	10	10	1.1	60	TO-220F

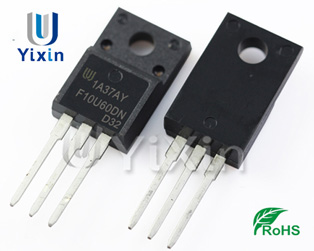

FFPF10U60DN	600	10	100	60	5	10	2.0	90	TO-220F
FFPF12UP20DN	200	6	120	60	100	6	1.0	35	TO-220F
FFPF20UA60DN	600	10	25	50	100	10	2.2	120	TO-220F
FFPF20UP20DN	200	10	115	100	100	10	1.0	35	TO-220F
FFPF20UP30DN	300	10	125	100	100	10	1.2	35	TO-220F
FFPF20UP60DN	600	10	103	50	100	10	2.0	40	TO-220F
FFPF30U60DN	600	30	100	180	15	30	2.1	90	TO-220F
FFPF30UP20DN	200	15	105	150	100	15	1.0	35	TO-220F
FFPF60SA60DS	600	8	95	80	100	8	2.0	30	TO-220F
